Jeep Grand Cherokee ESC Service Light Fix: Easy Guide

Can you fix the “Service Electronic Stability Control” light on your Jeep Grand Cherokee yourself? Yes, in many cases, you can fix the Jeep Grand Cherokee ESC service light yourself with some basic tools and knowledge. This guide will help you diagnose and fix common Jeep Grand Cherokee ESC problems, including when the traction control light also illuminates.

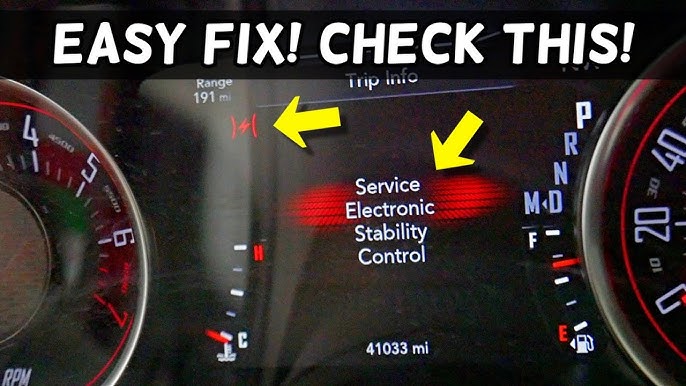

The “Service Electronic Stability Control” warning light on your Jeep Grand Cherokee can be a bit daunting, often accompanied by the traction control light disabled message or the Jeep Grand Cherokee ABS light illuminating simultaneously. This indicates an issue within the Electronic Stability Control (ESC) system, a crucial safety feature designed to help you maintain control of your vehicle during slippery conditions or sudden maneuvers. When this light comes on, it means the ESC system, and often the related Traction Control system, has detected a fault and has likely deactivated itself to prevent further damage or malfunction.

What exactly is the Electronic Stability Control (ESC) system? ESC is an advanced driver-assistance system that helps prevent loss of control in your vehicle. It works by monitoring steering, braking, and individual wheel speeds. If it detects that the vehicle is about to spin out or lose traction, it automatically applies the brakes to specific wheels and may reduce engine power to help you regain control. Think of it as a sophisticated co-pilot for your Jeep.

Deciphering the ESC Light and Its Causes

The illuminated ESC light on your dashboard isn’t just a random notification; it’s a signal that your Jeep’s stability system needs attention. Several factors can trigger this warning.

Common Triggers for Jeep Grand Cherokee ESC Problems

• Wheel Speed Sensor Malfunction: This is perhaps the most frequent culprit. Each wheel has a sensor that tells the ESC system how fast that wheel is spinning. If one of these sensors fails, gets dirty, or its wiring is damaged, the system can’t get accurate readings, leading to the Jeep Grand Cherokee service ESC light.
• Steering Angle Sensor Issues: The steering angle sensor tells the ESC system the direction you are steering. If this sensor malfunctions or is out of calibration, the ESC system can misinterpret your intentions, triggering the warning light.
• Yaw Rate Sensor Problems: The yaw rate sensor measures how fast your vehicle is rotating around its vertical axis (like a spinning top). A faulty yaw rate sensor can confuse the ESC system, leading to false activations or the ESP fault warning.
• ABS Control Module Faults: The Anti-lock Braking System (ABS) control module is closely integrated with the ESC system. If the ABS module has a problem, it can affect the ESC’s operation. This is often why the Jeep Grand Cherokee ABS light also illuminates.
• Low Battery Voltage: While less common, extremely low battery voltage can sometimes cause electronic modules, including the ESC system, to behave erratically and trigger warning lights.
• Tire Pressure Issues: Significantly low tire pressure, especially if it causes one tire to rotate at a vastly different speed than the others, can sometimes mislead the ESC system.
• Aftermarket Modifications: Improperly installed aftermarket modifications, especially those affecting the vehicle’s suspension or electrical system, can inadvertently interfere with the ESC system.
• Software Glitches: Like any complex electronic system, the ESC module can occasionally experience temporary software glitches that can be resolved with a reset.

Step-by-Step Jeep Grand Cherokee ESC Diagnosis

Before you can fix the Jeep Grand Cherokee ESC service light, you need to figure out what’s wrong. A proper Jeep Grand Cherokee ESC diagnosis is key.

Initial Checks: The Simplest Solutions First

It’s always best to start with the easiest and most common solutions.

1. Check Tire Pressure:

   • Ensure all tires are inflated to the recommended pressure. You can find this information on the sticker inside the driver’s side doorjamb or in your owner’s manual.
   • If you’ve recently changed a tire or had a flat, ensure the new tire has the correct pressure.

2. Inspect Tires:

   • Look for uneven tire wear or any damage to the tires. Severely worn tires can sometimes affect traction control.
   • Make sure all tires are the same size and type. Mismatched tires can confuse the ESC system.

3. Check for Obvious Wiring Damage:

   • Visually inspect wiring harnesses near the wheels, especially around the wheel speed sensors. Look for any signs of fraying, cuts, or corrosion.

Reading Diagnostic Trouble Codes (DTCs)

For a more precise Jeep Grand Cherokee ESC diagnosis, you’ll need to retrieve diagnostic trouble codes (DTCs) from the vehicle’s computer.

• Using an OBD-II Scanner: This is the most effective way to pinpoint the problem.
  • What you need: An OBD-II scanner. These can be purchased at auto parts stores or online. Some are simple code readers, while others offer more advanced diagnostics.
  • How to do it:
    1. Locate the OBD-II port. It’s usually under the dashboard on the driver’s side.
    2. Plug the scanner into the port.
    3. Turn the ignition key to the “ON” position (without starting the engine).
    4. Follow the scanner’s instructions to read the codes.
    5. Look for codes related to the ABS, ESC, or Traction Control systems (e.g., C codes, U codes). Common codes might include P0500 (Vehicle Speed Sensor ‘A’ Malfunction), P0501 (Vehicle Speed Sensor ‘A’ Range/Performance), or codes specific to wheel speed sensors.
    6. Record the codes. You can then search these codes online for specific explanations of the fault.

How to Reset ESC Jeep

Sometimes, the Jeep Grand Cherokee ESC service light can be triggered by a temporary glitch. A simple reset might clear it.

• Disconnecting the Battery:

  1. Safety First: Ensure the engine is off and the parking brake is engaged.
  2. Open the hood and locate the battery.
  3. Using a wrench (usually 10mm), disconnect the negative (-) battery terminal.
  4. Wait for at least 15-30 minutes. This allows the vehicle’s computer modules to reset.
  5. Reconnect the negative terminal securely.
  6. Start the engine and see if the ESC light remains illuminated.

  Caution: Disconnecting the battery will reset other electronic systems, such as radio presets, clock settings, and potentially learned engine parameters.

• Driving Cycle Reset: For some minor glitches, a specific driving cycle might clear the Jeep Grand Cherokee ESC service light. This usually involves driving the vehicle at various speeds, including some highway driving, allowing the system to recalibrate. Consult your owner’s manual for any specific driving cycles recommended for your Grand Cherokee model.

Common Fixes for Jeep Grand Cherokee ESC Service Light

Once you have an idea of the problem, here are some common fixes for Jeep stability control problems.

1. Replacing a Faulty Wheel Speed Sensor

• Difficulty: Moderate

• Tools needed: Socket set, wrench, possibly penetrating oil, new wheel speed sensor.

• What is a wheel speed sensor? A small electronic device, typically located near each wheel hub, that measures the rotational speed of the wheel.

• How it fails: Can become damaged by road debris, corrosion, or internal electrical failure.

• Symptoms of failure: ESC light, traction control light disabled, and sometimes the Jeep Grand Cherokee ABS light. The speedometer might also become erratic or stop working.

• Steps to Replace:

  1. Locate the sensor: The wheel speed sensor is usually mounted on the steering knuckle or the back of the brake dust shield, with a wire leading to the wiring harness.
  2. Access the sensor: You may need to remove the wheel and possibly the brake caliper and rotor for better access, depending on your Jeep Grand Cherokee model.
  3. Disconnect the wiring: Carefully unplug the electrical connector from the sensor.
  4. Remove the old sensor: It’s typically held in place by one or two small bolts. You might need to gently pry it out if it’s seized. Penetrating oil can help if it’s stuck.
  5. Install the new sensor: Ensure it’s seated correctly and secure it with the mounting bolt(s). Make sure it’s aligned properly to read the reluctor ring (a toothed ring on the axle or hub).
  6. Reconnect the wiring: Plug the new sensor’s connector securely.
  7. Reassemble: If you removed other parts, reassemble them correctly.
  8. Test: Start the Jeep and check if the ESC light has gone off. You may need to perform a reset or drive the vehicle for the light to clear.

  Table: Wheel Speed Sensor Replacement – Key Components

  Component	Description	Importance
  Wheel Speed Sensor	Measures wheel rotation speed.	Crucial for ESC, ABS, and Traction Control function.
  Reluctor Ring	Toothed ring that the sensor reads.	Provides the data for the sensor.
  Mounting Bolt(s)	Secures the sensor in place.	Ensures the sensor stays aligned.
  Electrical Connector	Connects the sensor to the vehicle’s wiring harness.	Transmits the sensor’s signal to the control module.

2. Cleaning or Replacing ABS Wheel Hub Assembly

• Difficulty: Moderate to Difficult

• Tools needed: Socket set, torque wrench, jack, jack stands, pry bar, wheel hub assembly (if replacing), cleaning supplies.

• What is a hub assembly? The hub assembly connects the wheel to the vehicle and often houses the wheel speed sensor and the reluctor ring. A worn hub can cause the reluctor ring to become damaged or misaligned, affecting the electronic stability control sensor.

• How it fails: Bearings can wear out, leading to looseness, and the integrated reluctor ring can become corroded or damaged.

• Symptoms: Besides the ESC light, you might hear humming or grinding noises from a specific wheel, or feel looseness in the steering.

• Steps to Replace:

  1. Safety First: Park on a level surface, engage the parking brake, and block the rear wheels.
  2. Jack up the vehicle: Safely lift the front or rear of the Jeep, depending on which hub needs replacement, and support it with jack stands.
  3. Remove the wheel.
  4. Disassemble: This involves removing the brake caliper, brake rotor, and sometimes the steering knuckle or suspension components to access the hub assembly.
  5. Remove the old hub assembly: It’s typically bolted to the steering knuckle.
  6. Clean the mounting surface: Ensure the area where the new hub will mount is clean.
  7. Install the new hub assembly: Align it correctly and bolt it in place, torquing the bolts to the manufacturer’s specifications.
  8. Reassemble: Reinstall the brake rotor, caliper, and any other components you removed.
  9. Test: Reinstall the wheel, lower the vehicle, and start the engine. The ESC light should be off.

3. Steering Angle Sensor Calibration or Replacement

• Difficulty: Moderate to Difficult (Calibration can be tricky)

• Tools needed: OBD-II scanner capable of steering angle sensor calibration, possibly specialized tools depending on the Jeep model.

• What is a steering angle sensor? Located in the steering column, it measures the position and direction of the steering wheel.

• How it fails: Internal electronic failure or it can become out of calibration after certain repairs, like replacing steering components.

• Symptoms: ESP fault, ESC light, and potentially issues with other systems that use steering input, like adaptive cruise control or parking assist.

• Calibration Process (General):

  1. Ensure vehicle is on a level surface.
  2. Straighten the steering wheel.
  3. Connect OBD-II scanner: Access the ESC or ABS module.
  4. Initiate calibration: Follow the scanner’s prompts to perform the steering angle sensor calibration. This often involves turning the steering wheel slowly from lock to lock.
  5. Confirm calibration: The scanner will usually indicate if the calibration was successful. The Jeep Grand Cherokee service ESC light may turn off after a short drive.

• Replacement: If calibration doesn’t work or the sensor is confirmed faulty, it will need to be replaced. This is usually a more involved process requiring steering column disassembly and is often best left to a professional mechanic if you’re not comfortable with it.

4. Addressing Yaw Rate Sensor Issues

• Difficulty: Moderate to Difficult

• Tools needed: Socket set, scanner for diagnosis.

• What is a yaw rate sensor? This sensor measures the rate at which your vehicle is rotating around its vertical axis.

• How it fails: Internal failure or contamination.

• Symptoms: ESC light, poor traction control performance, and potential instability during maneuvers.

• Diagnosis and Fix:

  1. Locate the sensor: The yaw rate sensor is often located under the center console or near the transmission tunnel.
  2. Scan for codes: A code reader will usually provide specific codes indicating a yaw rate sensor fault.
  3. Clean and secure: Ensure the sensor is clean and its connectors are secure. Sometimes, simply reseating the connector can resolve a temporary issue.
  4. Replacement: If the sensor is faulty, it will need to be replaced. This is a component that often requires recalibration after replacement.

5. Software Updates or Module Reset

• Difficulty: Easy to Moderate (if done yourself with a suitable scanner)

• Tools needed: Advanced OBD-II scanner with bidirectional control or a trip to the dealership.

• How it works: Occasionally, the ESC system can experience software glitches. Dealerships have specific tools to perform software updates or re-flash modules. Some advanced aftermarket scanners can also perform similar functions.

• When to consider: If you’ve ruled out physical components and basic resets haven’t worked, a software issue might be the cause.

Frequently Asked Questions (FAQ)

Here are some common questions regarding the Jeep Grand Cherokee ESC service light:

• Q1: Can I drive with the ESC light on?

  • A: Yes, you can generally drive with the ESC light on, but it means the Electronic Stability Control and Traction Control systems are likely disabled. This reduces your vehicle’s ability to help you maintain control in slippery conditions or during emergency maneuvers. Drive cautiously, especially in adverse weather.

• Q2: Is the ESC system related to the ABS system?

  • A: Yes, the ESC system heavily relies on components from the ABS system, such as wheel speed sensors and the ABS control module. This is why the Jeep Grand Cherokee ABS light often illuminates along with the ESC light.

• Q3: How much does it cost to fix the ESC light?

  • A: The cost varies greatly depending on the cause. Replacing a wheel speed sensor might cost between $100-$300 parts and labor. Replacing a hub assembly can be $300-$700+. Steering angle sensor calibration or replacement can also range from a few hundred dollars upwards. Dealership diagnostics and repairs are typically more expensive.

• Q4: What is an ESP fault?

  • A: ESP stands for Electronic Stability Program, which is another term for Electronic Stability Control. An “ESP fault” means there is an issue detected within the vehicle’s stability control system, similar to the Jeep Grand Cherokee service ESC warning.

• Q5: Can I ignore the ESC service light?

  • A: While you can technically drive with the light on, it’s not recommended. The ESC system is a critical safety feature. Ignoring it means you’re driving without this important protection, increasing the risk of accidents, especially in challenging driving conditions. It’s best to diagnose and fix the problem as soon as possible.

• Q6: My Jeep Grand Cherokee traction control is disabled. What does this mean?

  • A: This message typically appears when the ESC system detects a fault and automatically disables both ESC and Traction Control to prevent further issues. It signifies the same underlying problem that illuminates the ESC light.

Conclusion: Taking Control of Your Jeep’s Stability

The Jeep Grand Cherokee ESC service light can be a frustrating indicator, but with this guide, you’re better equipped to tackle common Jeep stability control problems. Remember to always prioritize safety. Start with the simple checks, utilize an OBD-II scanner for accurate Jeep Grand Cherokee ESC diagnosis, and if you’re not comfortable with a particular repair, it’s always wise to seek professional assistance from a qualified mechanic. By addressing the issue promptly, you can ensure your Jeep Grand Cherokee continues to provide a safe and stable driving experience.
